Slimline II Roof Rack Kit For Fiat 500X 2014 to Current - by Front Runner Outfitters
One of the best possible choices for a roof rack for your Fiat 500X from the 2014 to the current model.
The Slimline II by Front Runner is an outstanding piece of gear, with a load rating of 660 lbs, which will allow you to carry pretty much anything you can imagine, from kayaks, boards, large and heavy gear, to .

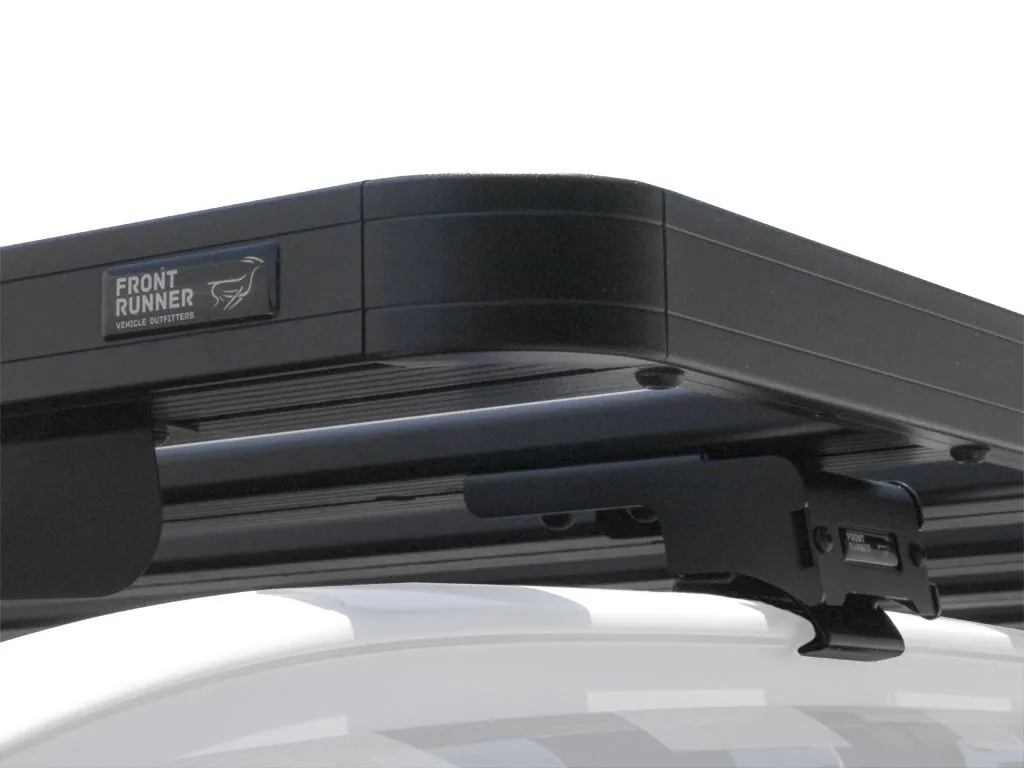

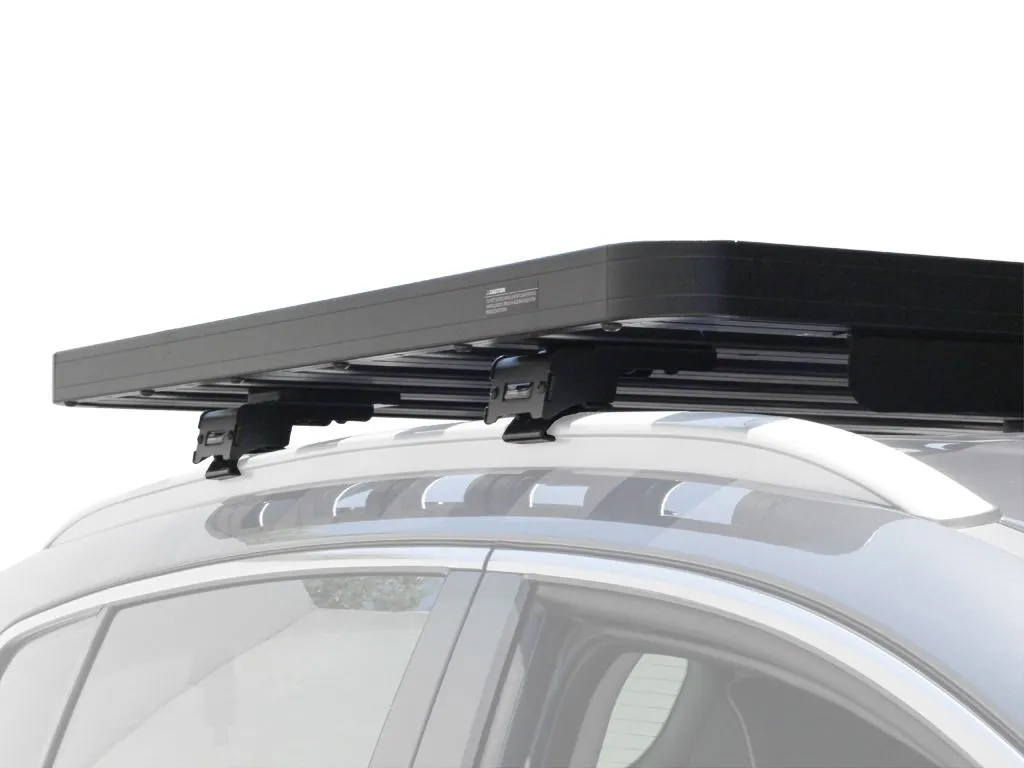

This 752mm/29.6" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 pairs of Rail Grip Feet to mount the Slimline II Tray to the roof rails of your Fiat 500X. This system installs easily with off-road tough feet that grip onto the existing factory/OEM roof rails.
No drilling is required, making installation a breeze.
NOTE: Your vehicle must be equipped with the factory/OEM roof rails in order to use this rack kit.
This rack kit can be removed leaving your vehicle’s roof and roof rails in their original condition.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
View The Rail Installation Manual
View The Rack Tray Installation Manual
We offer FREE Shipping!
Consists Of:
- 2 x GOFR001 - Rail Foot Base (Pair) - by Front Runner
- 2 x GOFR011 - Flush Rail Grab-On Outer Grips / No. 2 - by Front Runner
- 2 x GOFR034 - Flush Rail Grab-On Inner Grips / E - by Front Runner

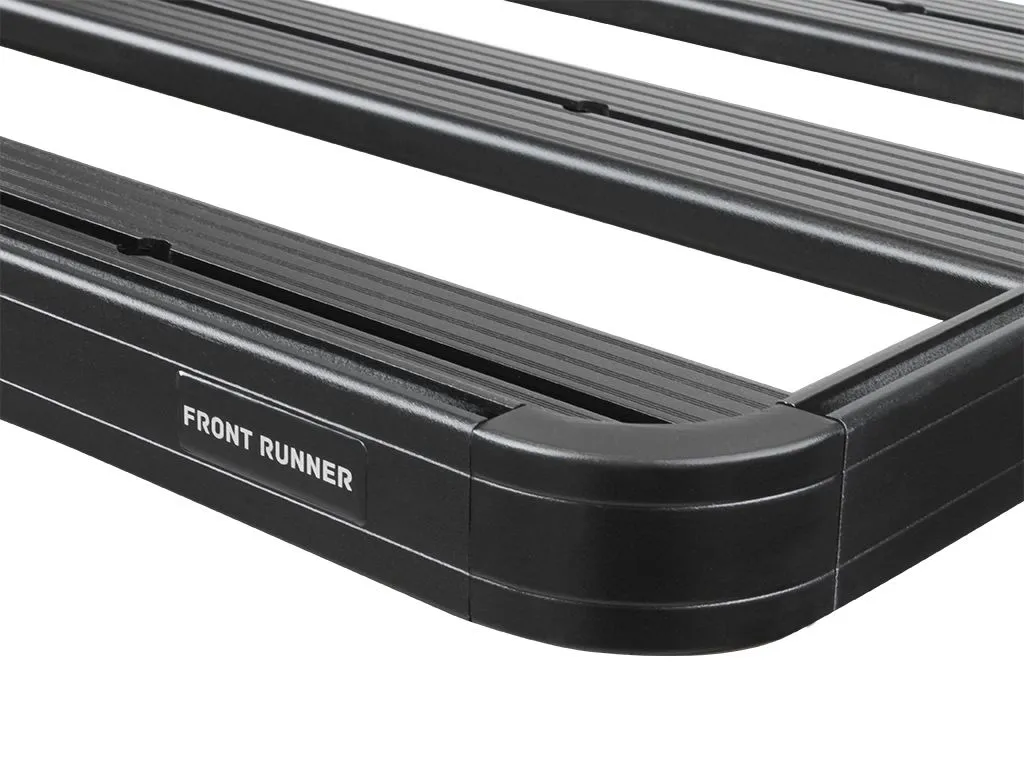

- 1 x RRSTD04 - Slimline II Tray - 1255mm(W) X 752mm(L) - by Front Runner
Materials used:
- Black epoxy powder-coated T6 aluminium
- 3CR12 Stainless Steel
How To Install:
- Approximate Installed Weight 17kg (38lbs)

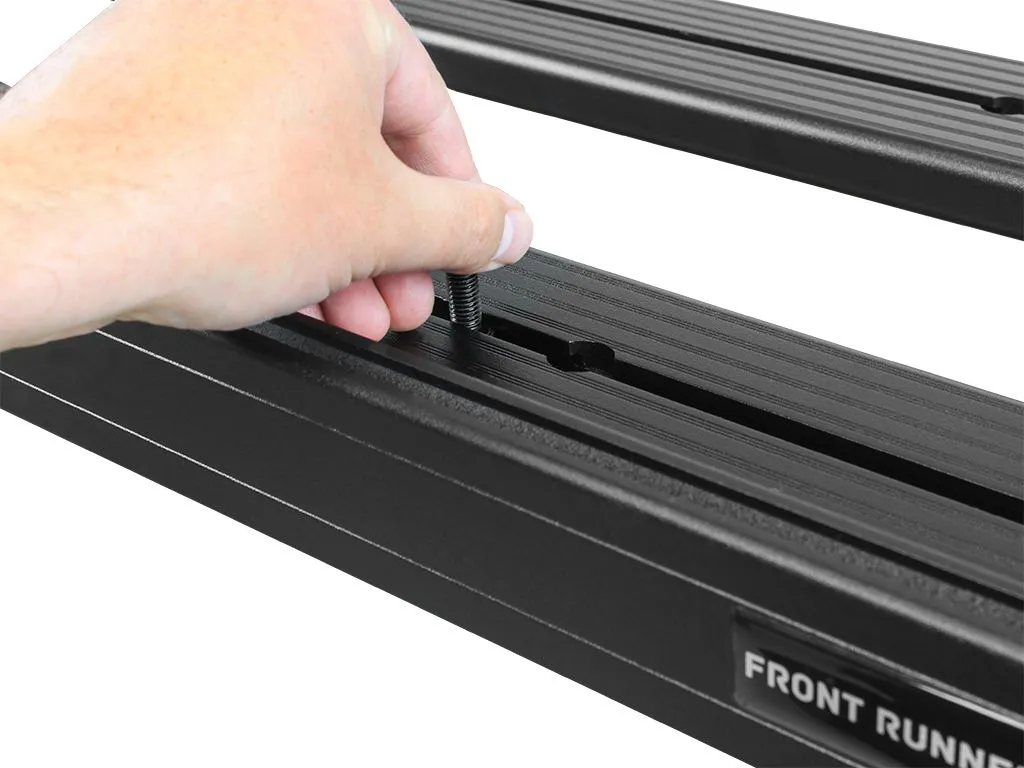

- The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
- To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
- If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
- If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
